KEY Capabilities

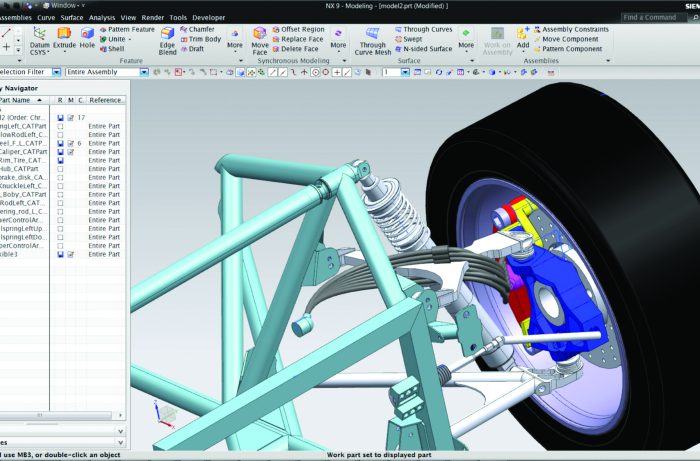

Quickly convert CAD geometry and assemblies into fully functional motion models
Seamlessly transfer motion results to other Simcenter 3D applications for structural analysis, durability, acoustics and more.
Includes a natural and direct interface to Simcenter Amesim software for accurate behavior of electronics, hydraulics and control components throughout the system.
Analysis types include kinematic, dynamic, static, quasi-static, time and step, articulation, spreadsheet.
Efficient set of sparse matrix algorithms to solve the linear equations formed in each type of analysis.
Explicit and implicit numerical integrators.
Support model exchange and co-simulation.
User-defined subroutines.
Benefits
Reduce expensive physical prototypes.
Gain insight into the kinematic and dynamic performance of a mechanism by animating, graphing and generating motion envelopes and validating product clearance.
Achieve highly accurate calculations (displacements, velocities, acceleration, reaction forces, flexible body results)
Seamlessly share results across Simcenter 3D to improve productivity for you or your extended simulation team.
