NX INTEGRATED MANUFACTURABILITY REVIEW
Premium design
review for
production-ready
parts.
Production Requirements Checker helps engineering teams validate whether part geometry is easier to manufacture before mold, tooling, and production issues become expensive.
22
Plastic part verification items
14
Sheet metal verification items
NX
Integrated checking workflow
1
Single review environment

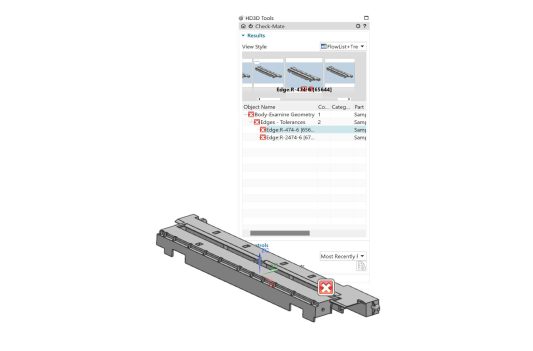

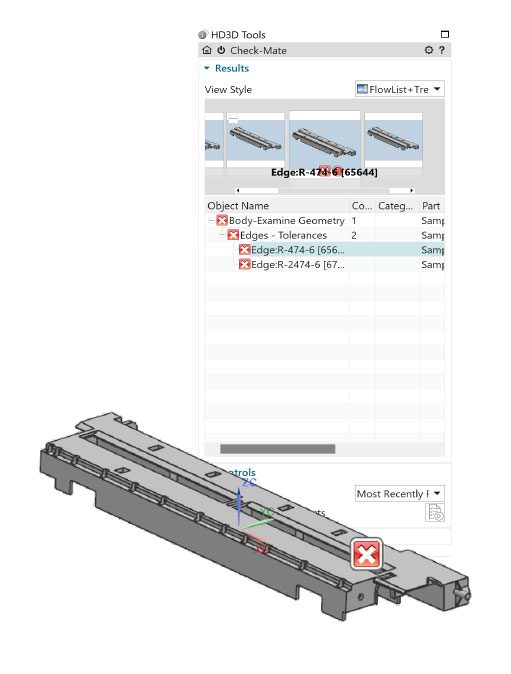

Review dashboard
Manufacturing requirement checks
Plastic parts
Shape checks for mold manufacturing readiness
Sheet metal
Bend and unfolded-shape validation
Die-cast

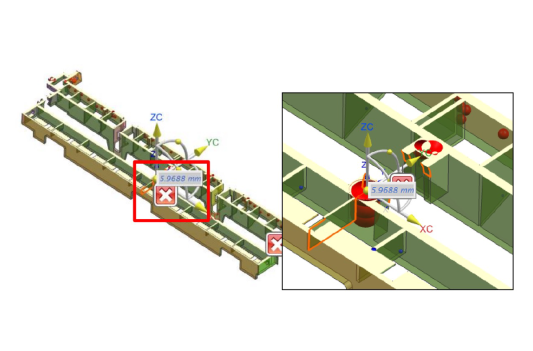

Spacing and corner condition checks
Capture findings and communicate changes with clearer design-to-manufacturing feedback.
OVERVIEW
A better way to review producibility before manufacturing starts.
Production Requirements Checker is designed for teams that want to verify whether product shapes align with practical manufacturing requirements while still meeting design intent. By automating key checks, the module helps reduce overlooked issues, shorten review effort, and improve design quality earlier in the process.
Why teams use it
Verification library
Purpose-built check categories for common manufacturing scenarios.
From molded plastic parts to sheet metal and die-cast components, PRC provides a structured set of checks to help engineering teams review geometry with production constraints in mind.

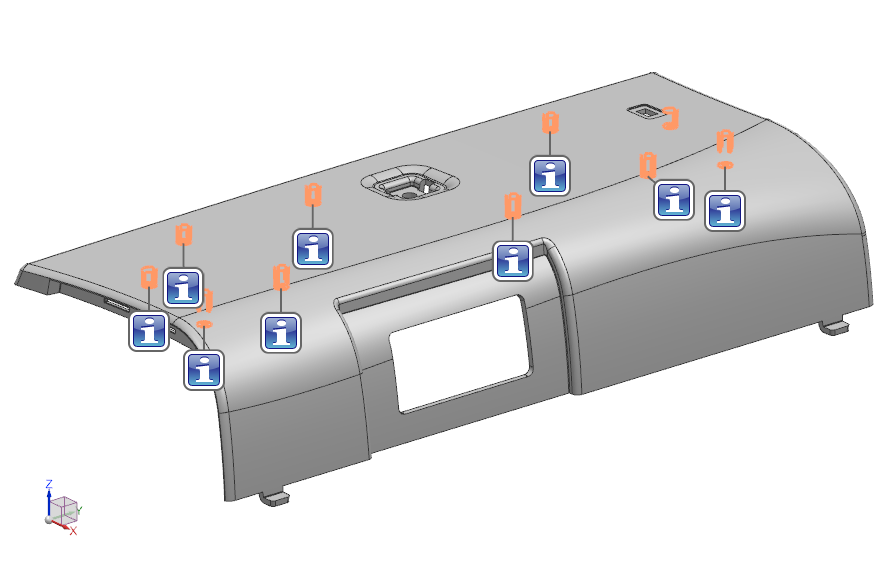

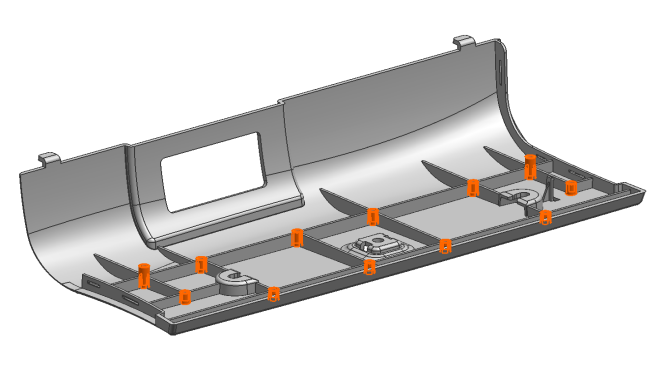

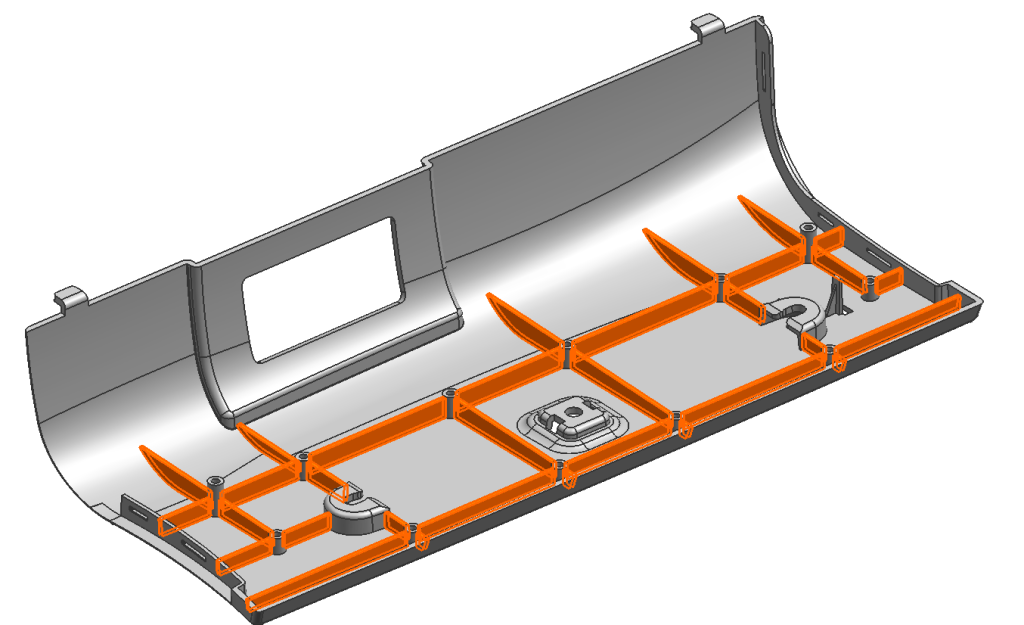

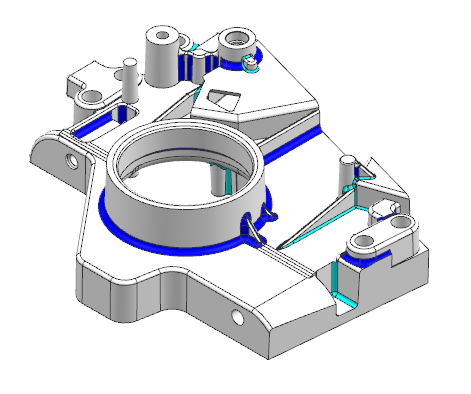

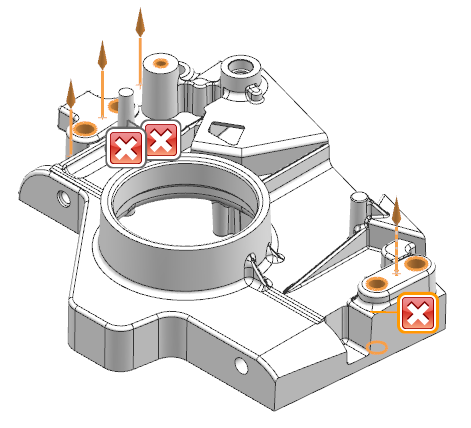

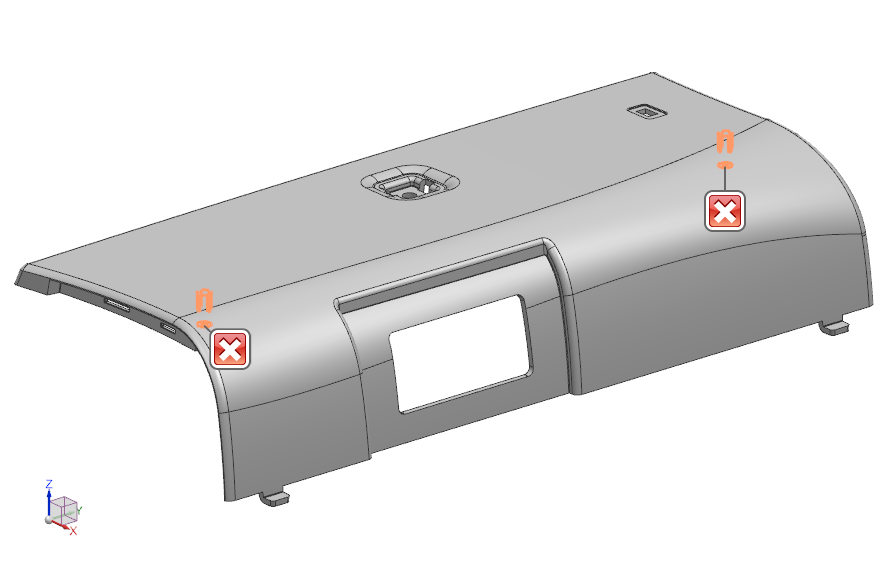

Plastic parts
Representative items from 22 checks

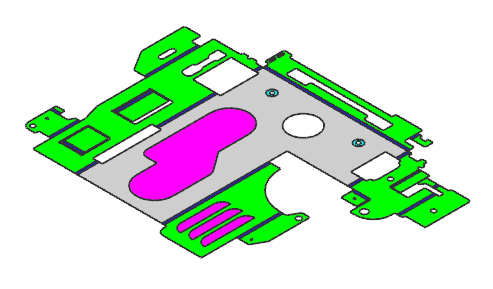

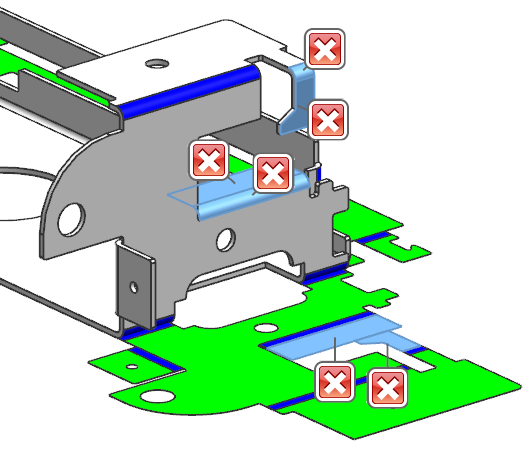

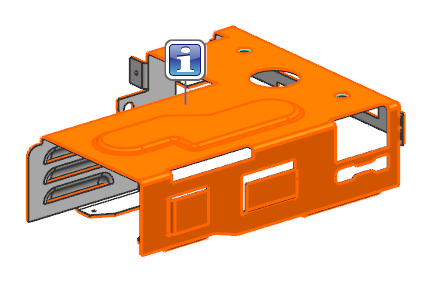

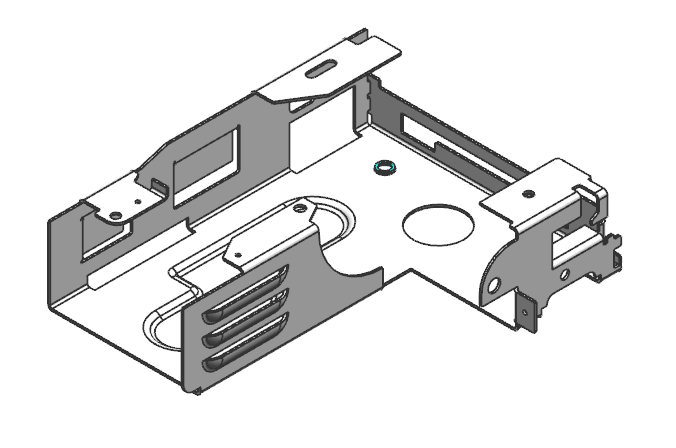

Sheet metal parts
Representative items from 14 checks

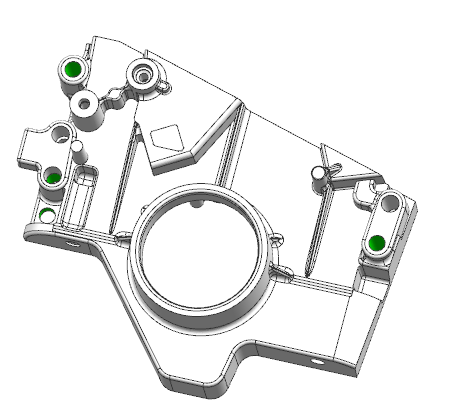

Die-cast parts
Typical spacing and geometry review items
BENEFITS
A more premium review workflow for engineering organizations.
Designed to help engineering teams work faster, maintain greater consistency, and seamlessly connect design to manufacturing.
Verify earlier in NX
Run production-oriented checks directly on 3D models inside NX before downstream tooling work begins
Standardize review logic
Reduce person-dependent checking and make manufacturability review more consistent across teams.
Work with reused CAD data
Support non-history solid models to help teams review supplier or imported geometry more efficiently.

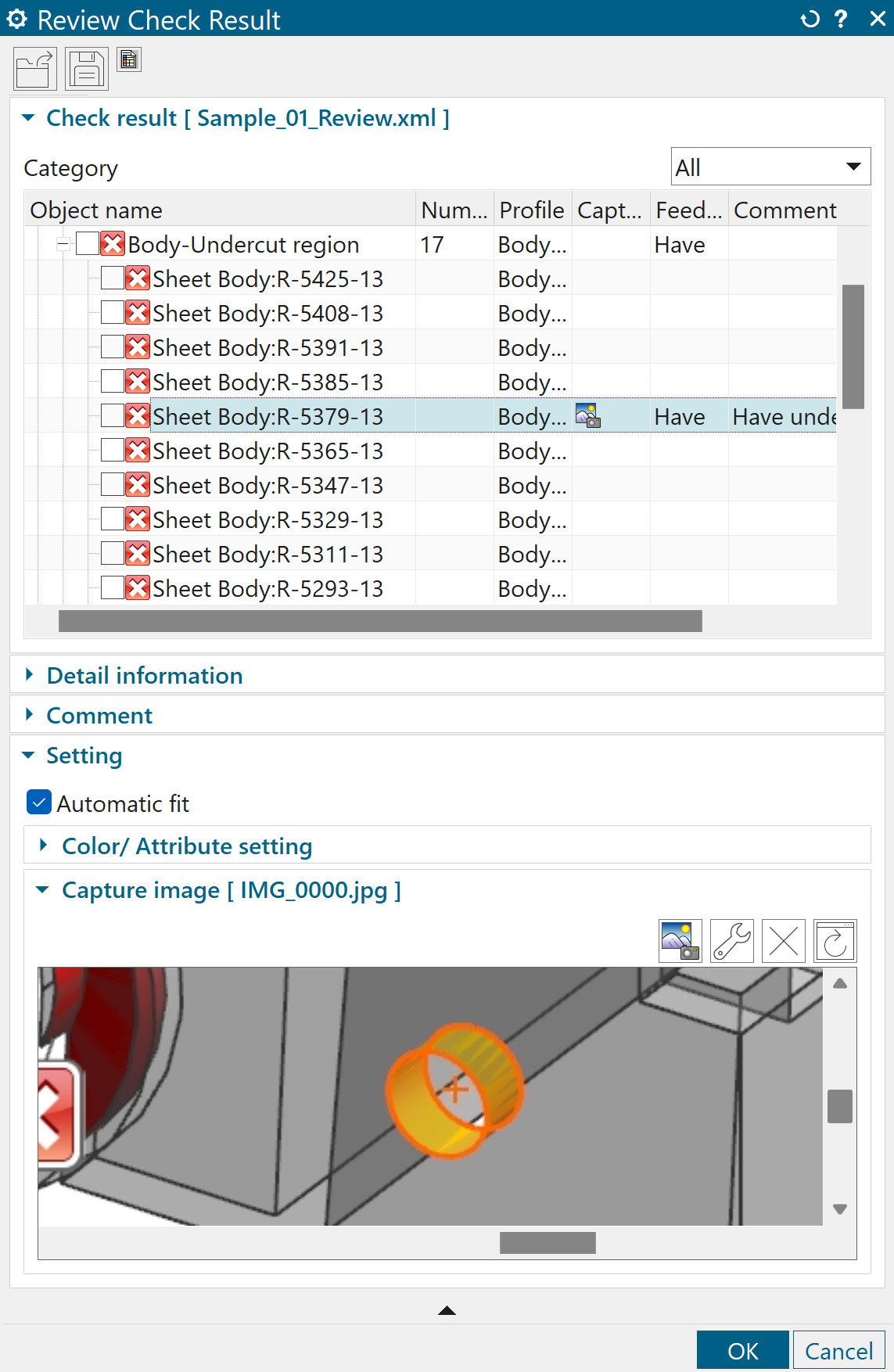

Communicate findings clearly

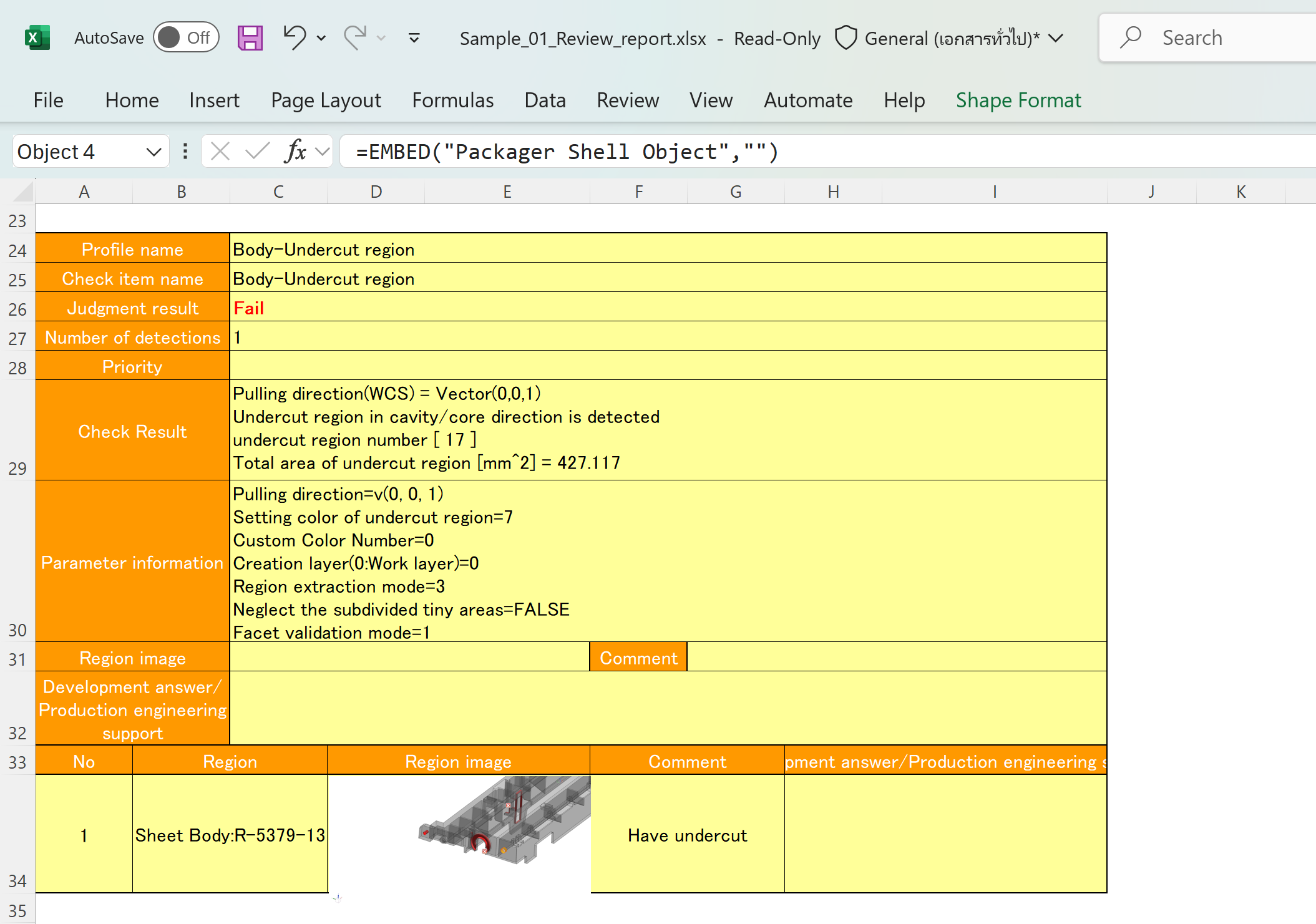

Create feedback reports and highlight change areas for smoother design-to-manufacturing collaboration.
Use case fit
Built for design teams working toward production readiness.
PRC is especially useful when engineering teams need a repeatable and practical way to evaluate geometry against production-oriented design rules for mold manufacturing and related downstream processes.
Earlier
verification
Review producibility before avoidable issues flow downstream.
Consistent
checks
Apply common verification logic across projects and engineers
Clearer
collaboration
Share findings in a format that supports design and manufacturing discussion.
